REST example

A tutorial on using rest to create an application with budibase

This tutorial builds a simple users app backed by a REST API with read/create/update flows.

Target architecture

  • One REST connection (Users API)
  • Four queries (getUsers, getUser, createUser, updateUser)
  • One table view + two side-panel forms

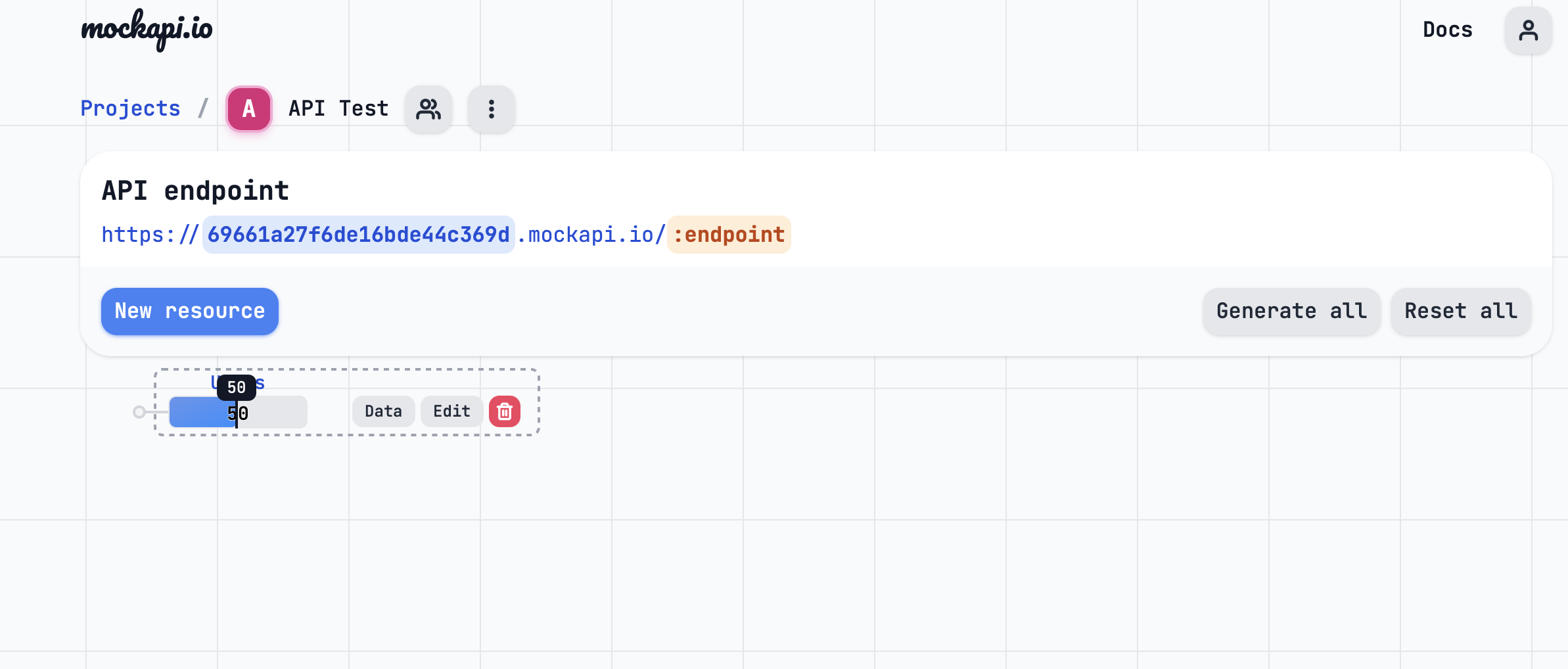

Part 1: Prepare sample API

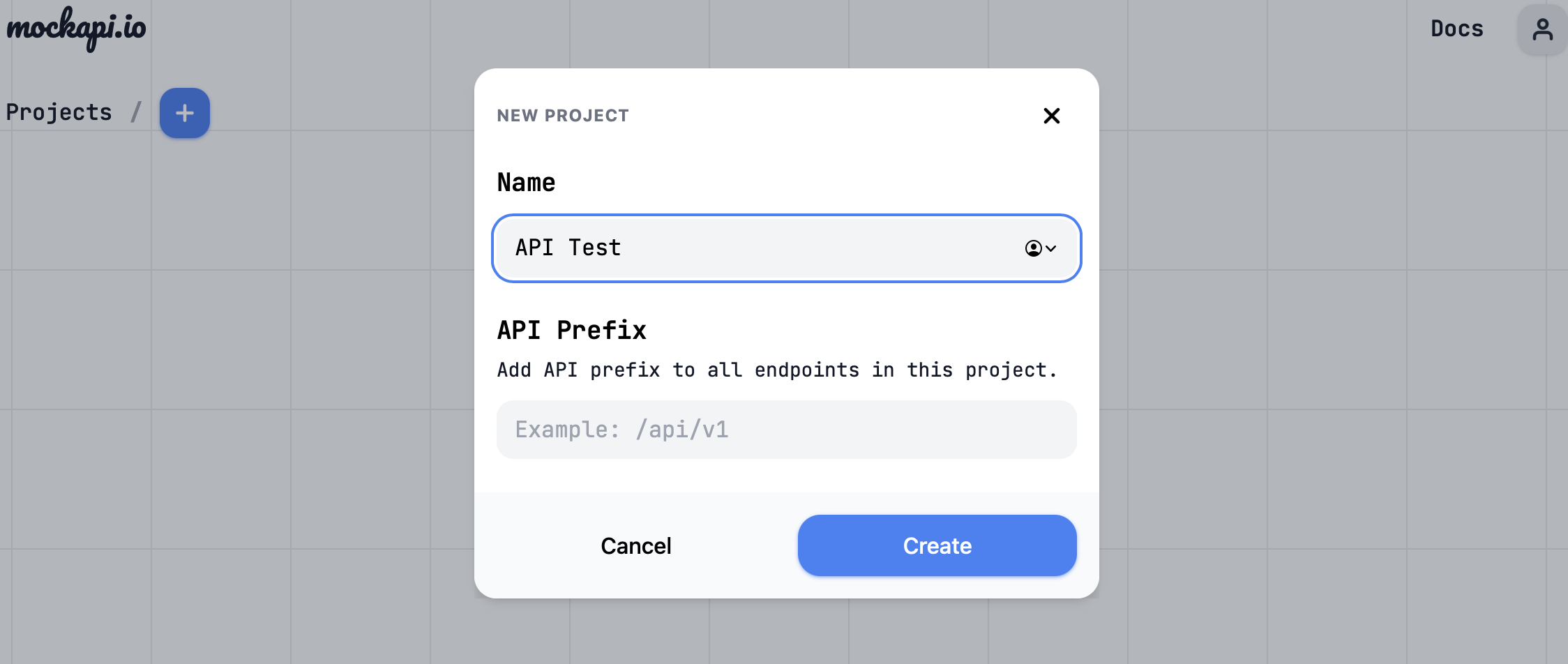

  1. Create a sample endpoint (for example MockAPI)

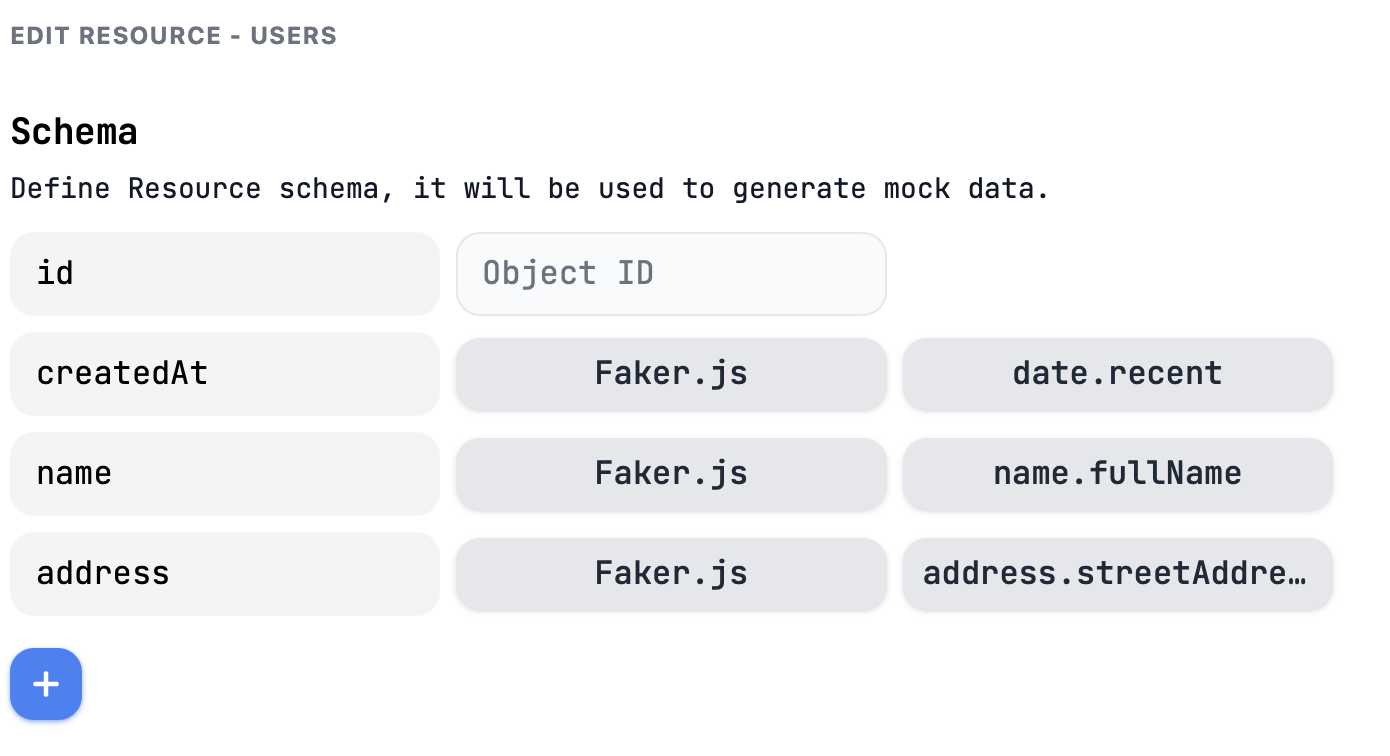

  2. Add fields:
    • id
    • name
    • address
    • createdAt
  3. Copy the base URL

Part 2: Create connection

  1. Open Settings > Connections > APIs
  2. Click Add connection > Create custom
  3. Set display name to Users API
  4. In Credentials, set Base URL
  5. Save
  6. Click Open in API Editor

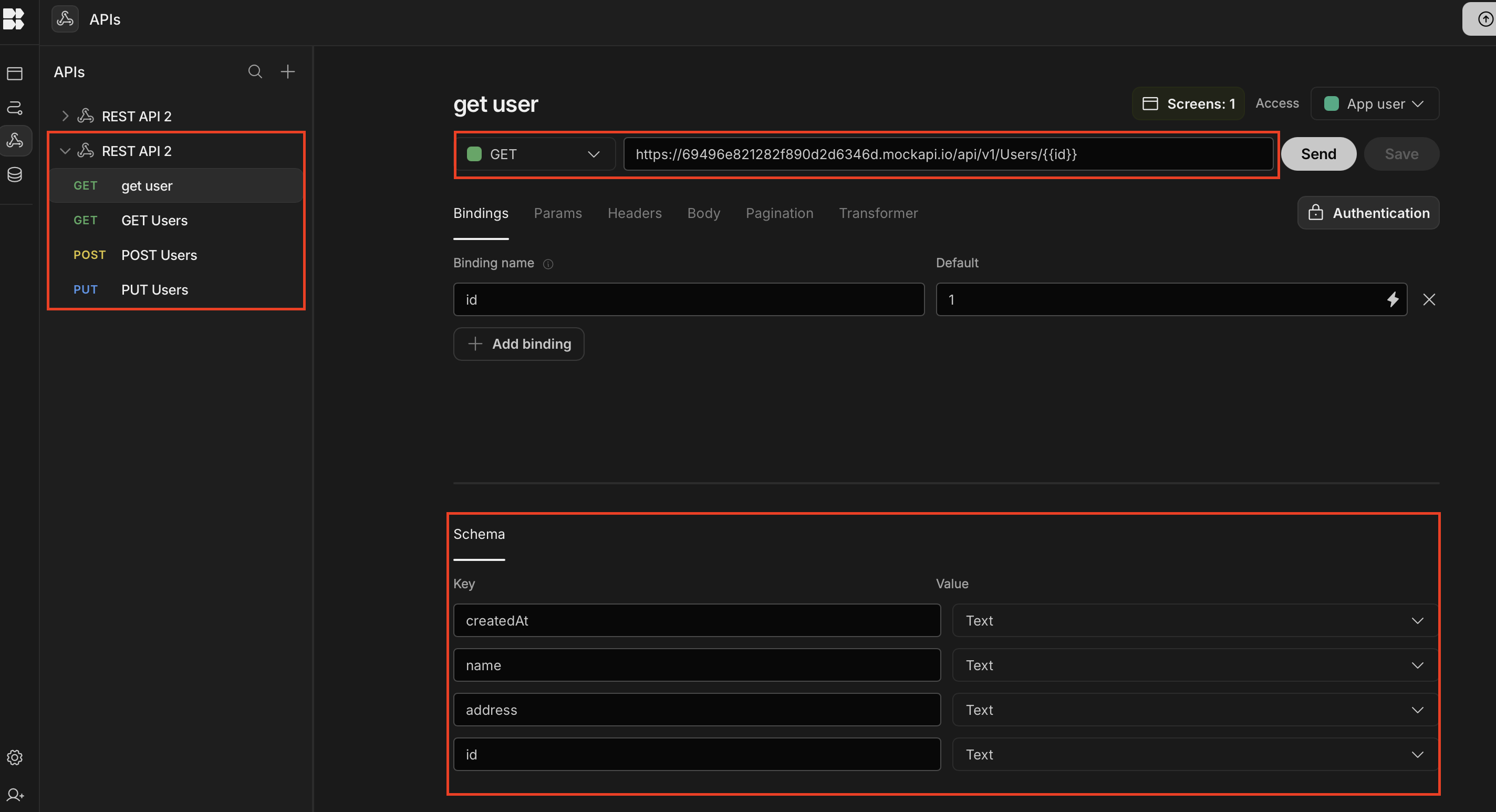

Part 3: Create CRUD queries

Create these queries:

  1. getUsers: GET /users
  2. getUser: GET /users/{{id}}

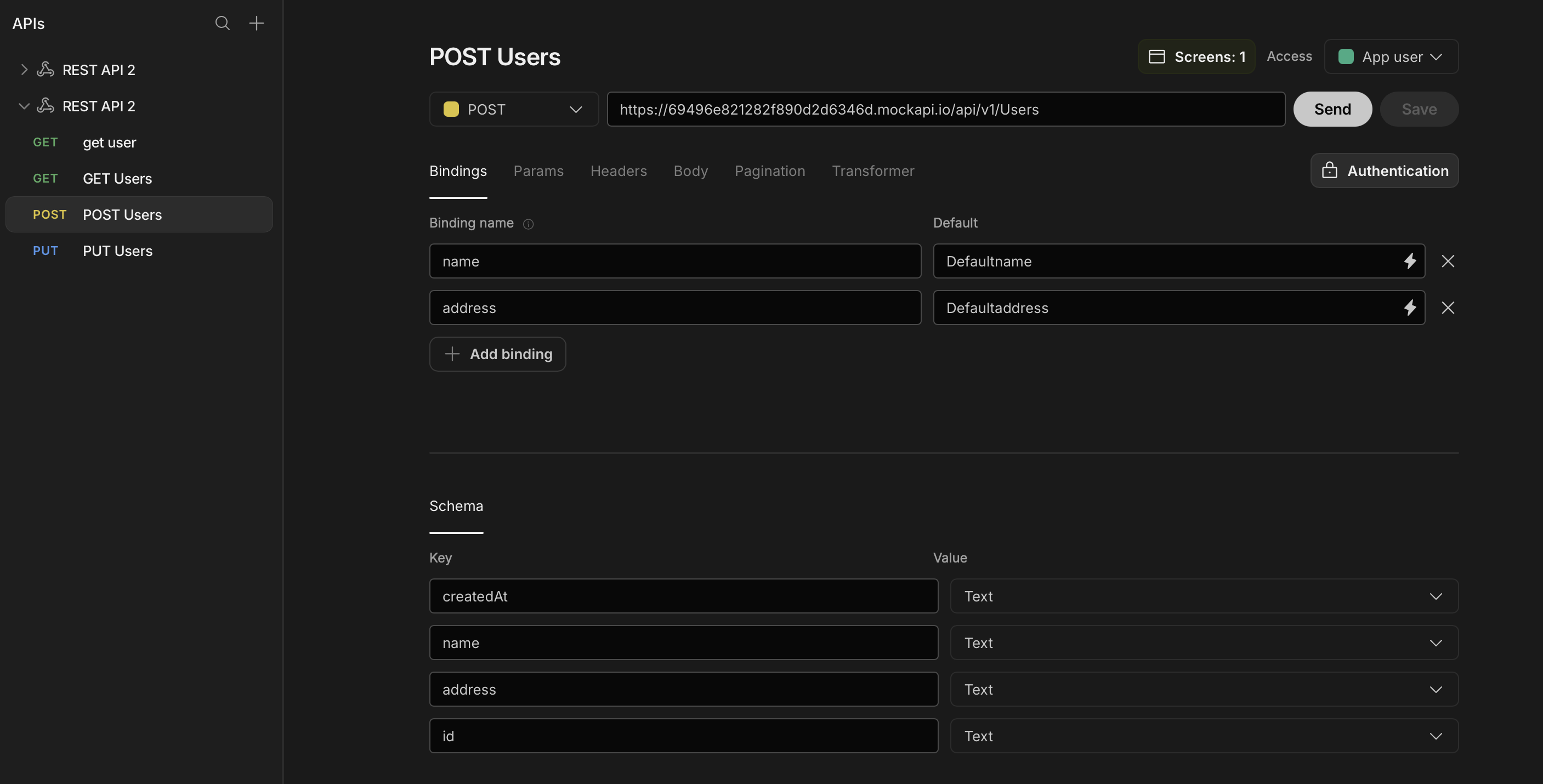

  3. createUser: POST /users

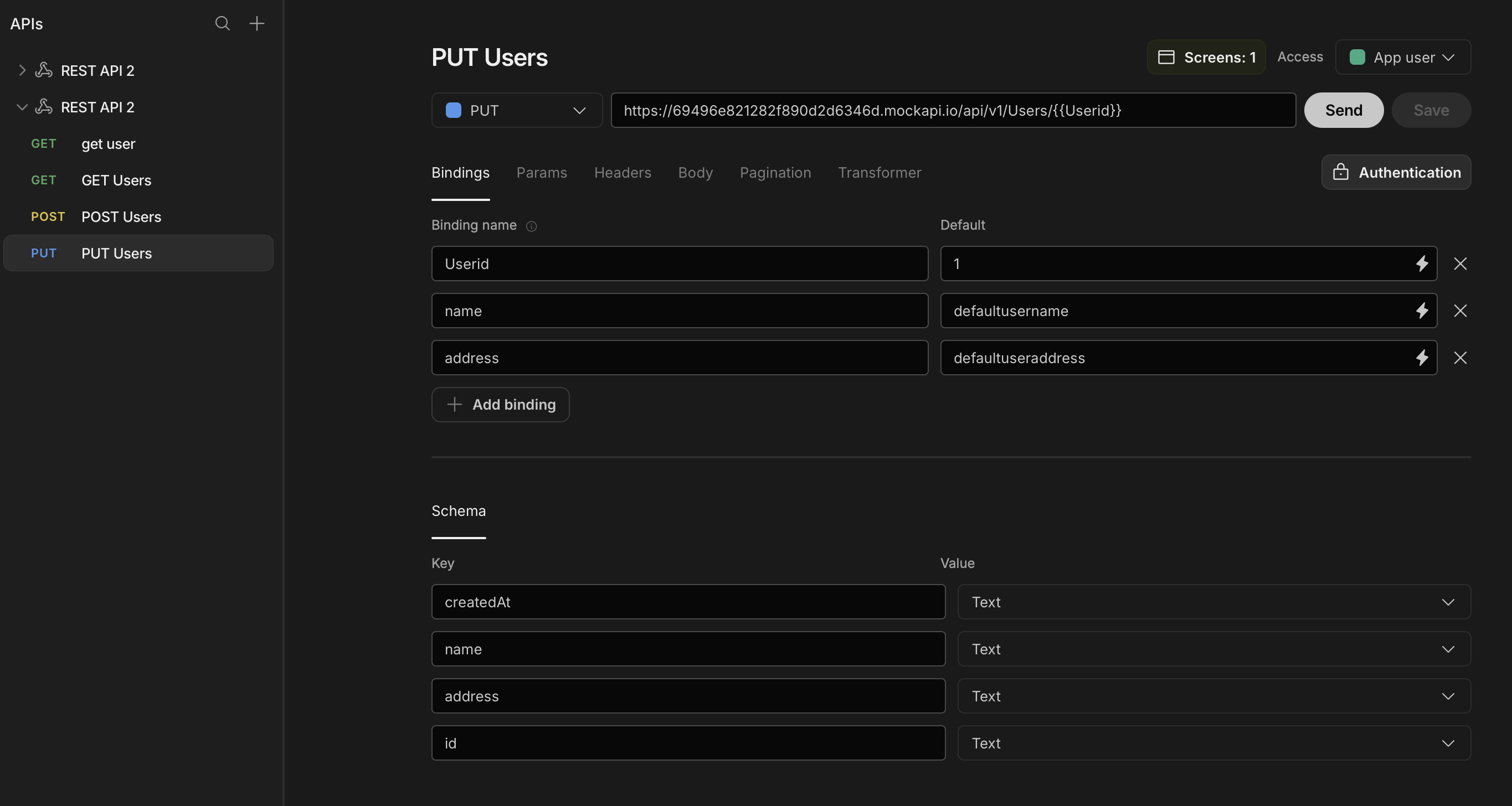

  4. updateUser: PUT /users/{{id}}

For each query:

  1. Set method and path

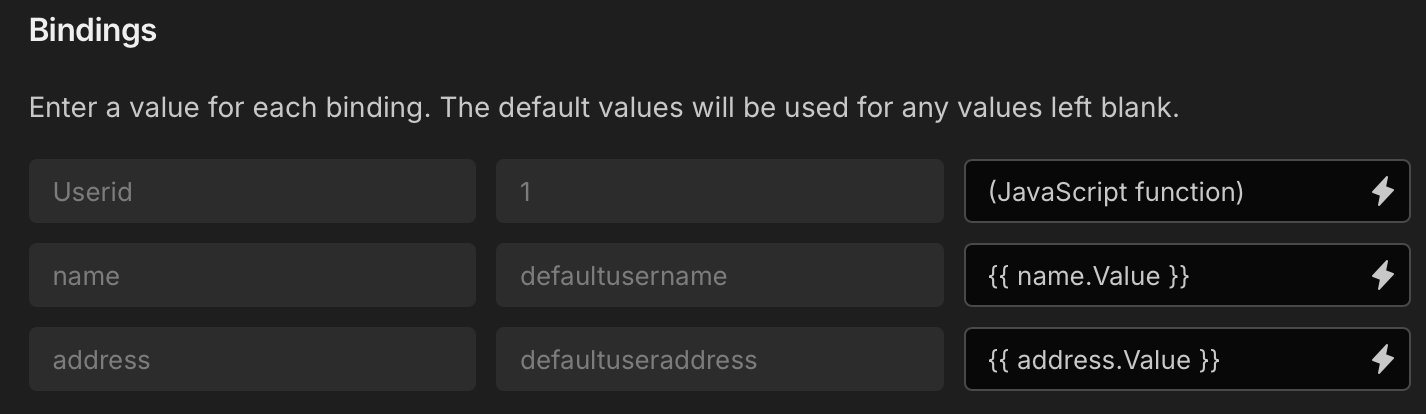

  2. Configure bindings
  3. Configure body for write queries
  4. Click Send
  5. Save query

Suggested request body for create/update

{
  "name": "{{ name }}",
  "address": "{{ address }}"
}

Part 4: Build list screen

  1. Create a screen
  2. Add a table
  3. Set table data source to getUsers

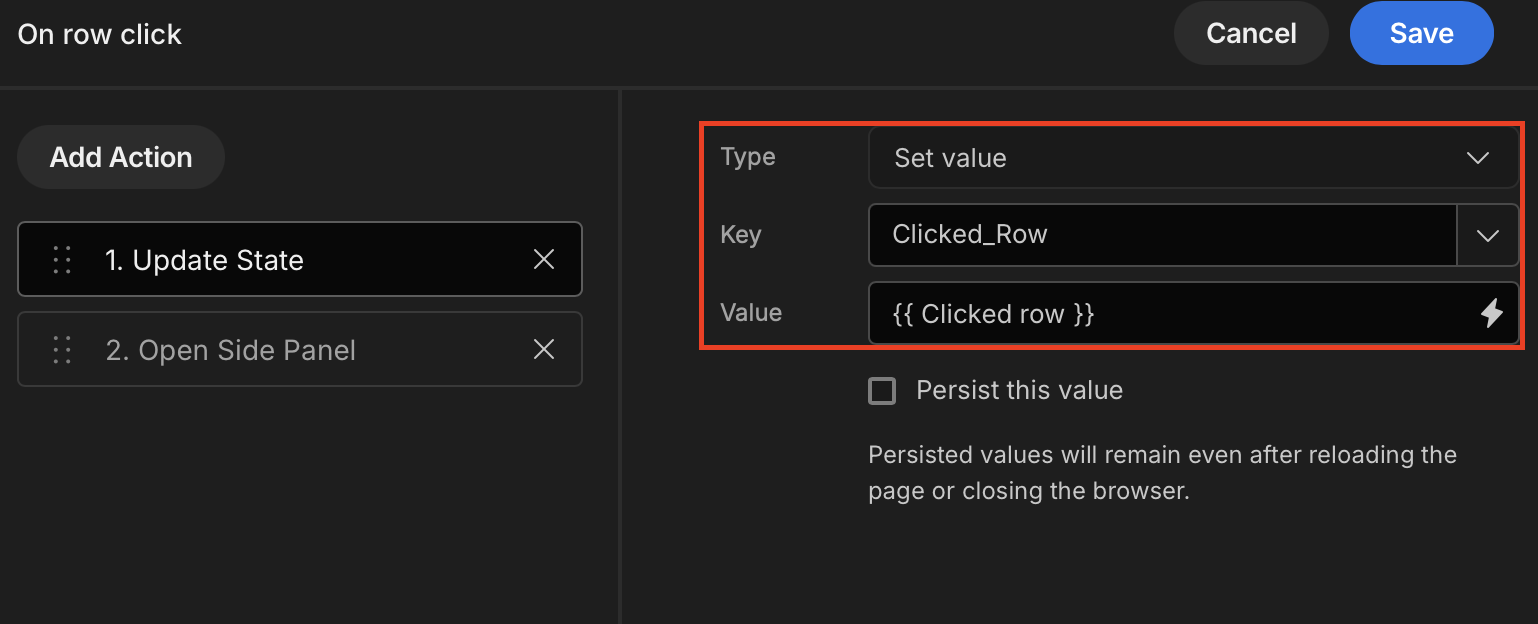

  4. Add row-click actions:
    • Update selected-row state
    • Open edit side panel

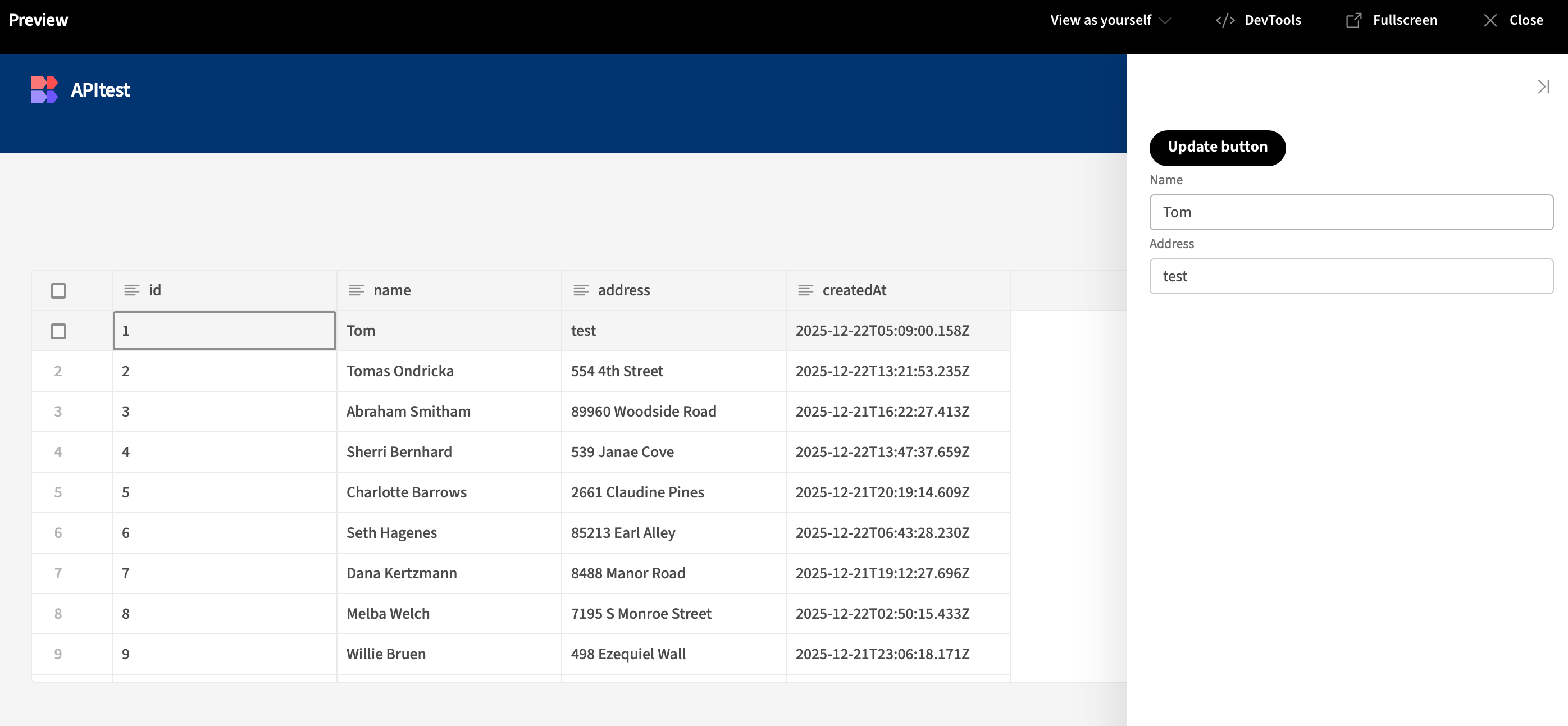

Part 5: Edit existing user

  1. Add edit side panel with form (name, address)

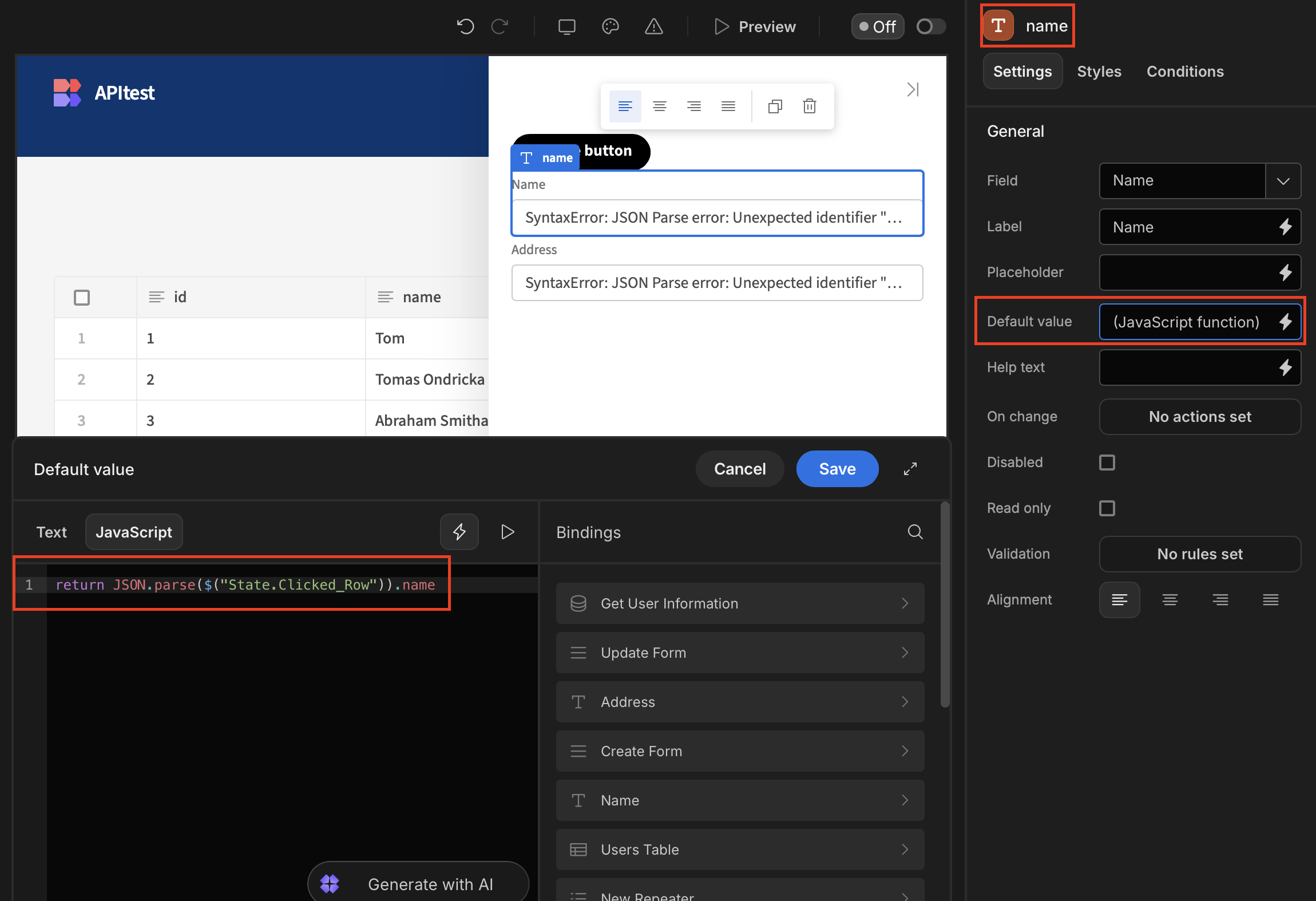

  2. Set default values from selected-row state
  3. Add Update button

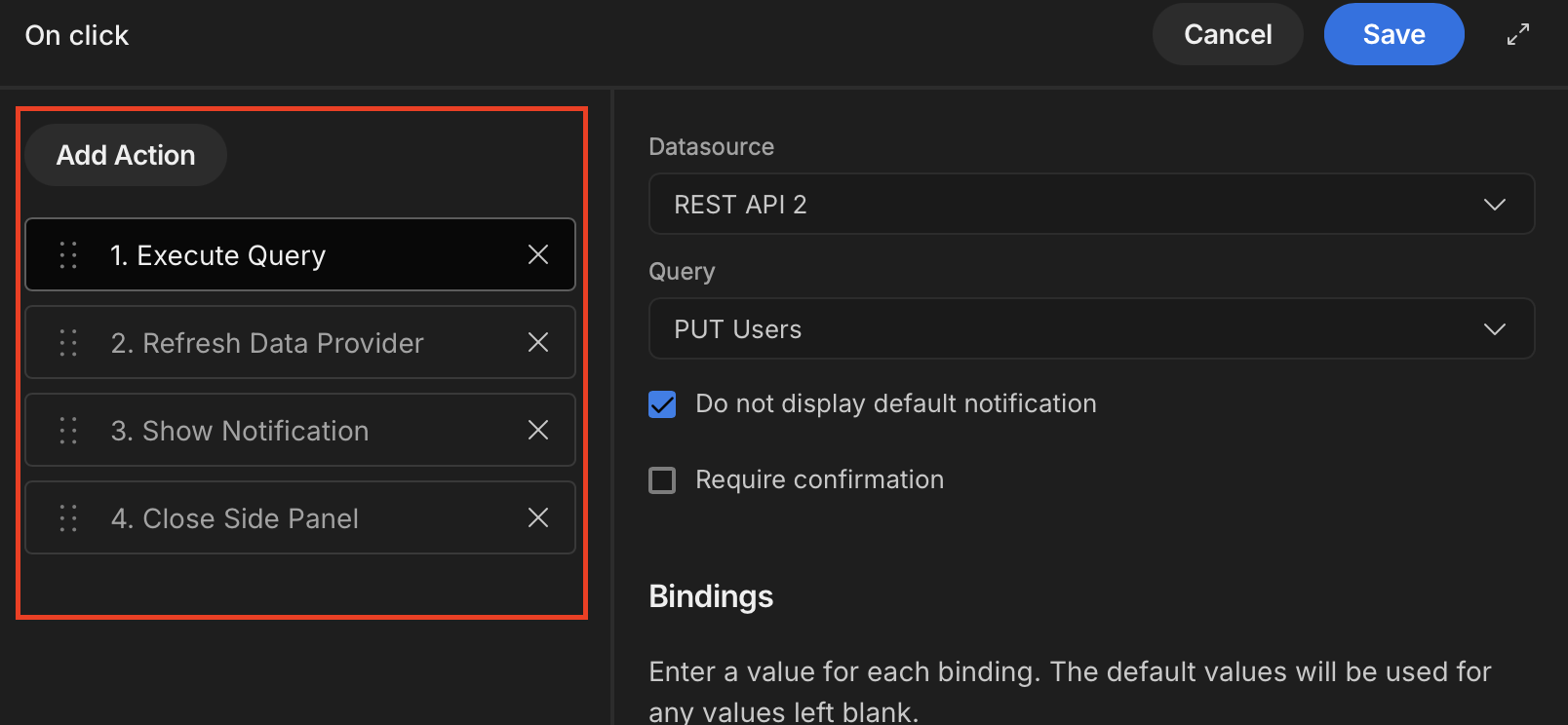

  4. Button actions:
    • Execute query updateUser
    • Map id, name, address
    • Refresh table
    • Show success notification
    • Close side panel

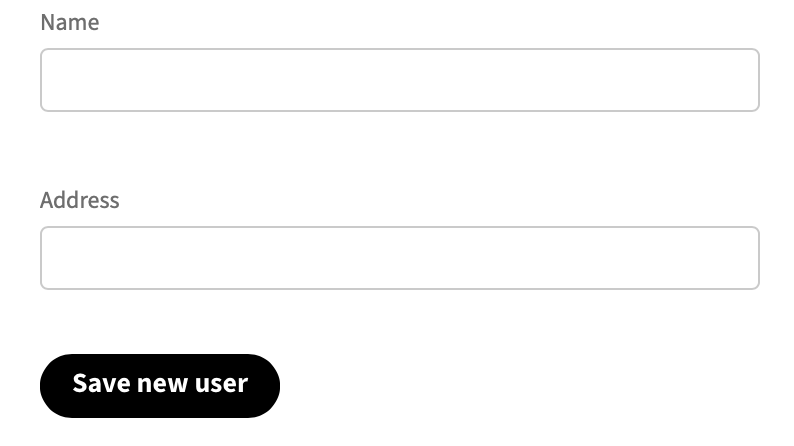

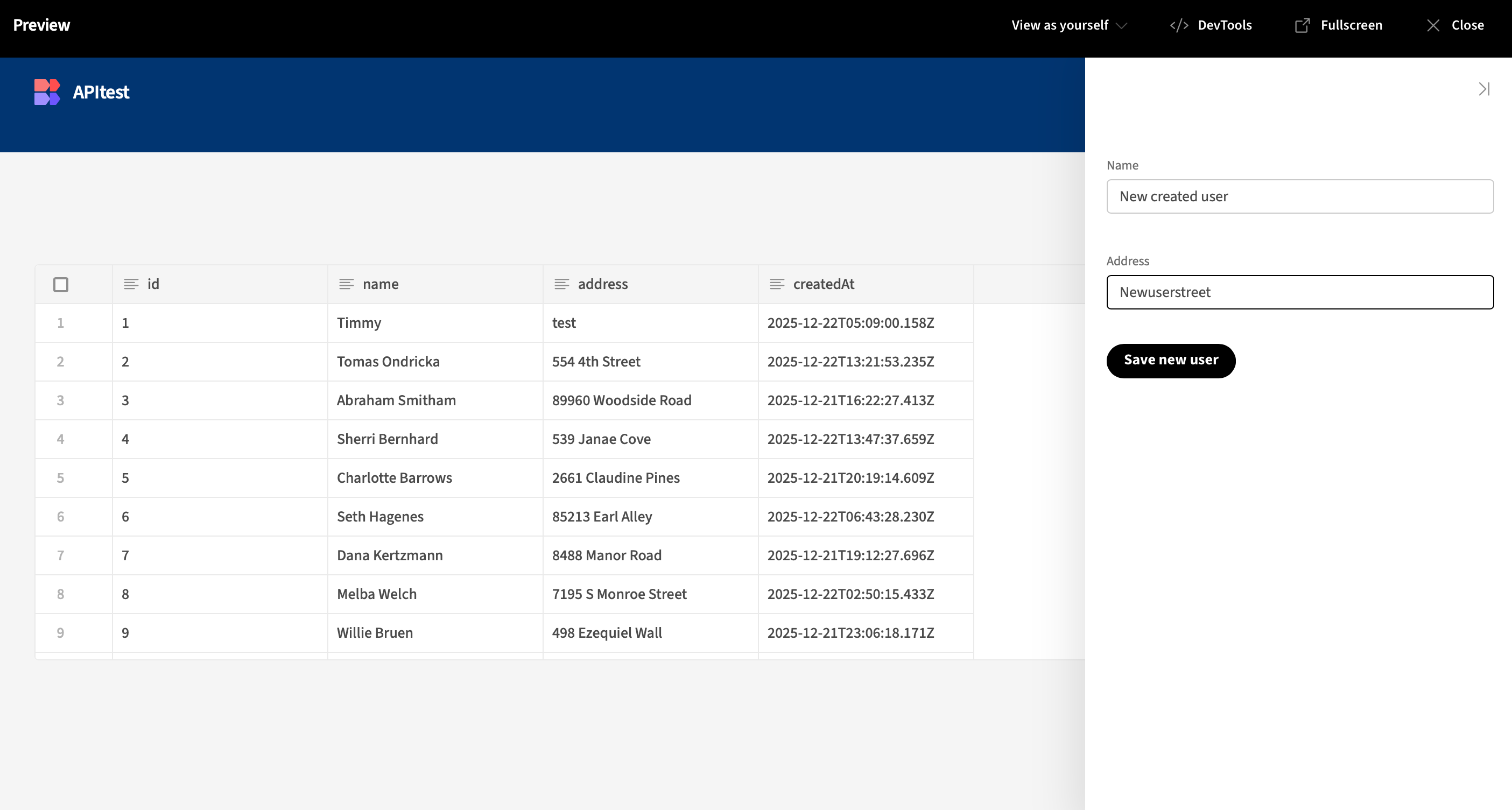

Part 6: Create new user

  1. Add Add new user button
  2. Open create side panel with required fields
  3. Add Save button

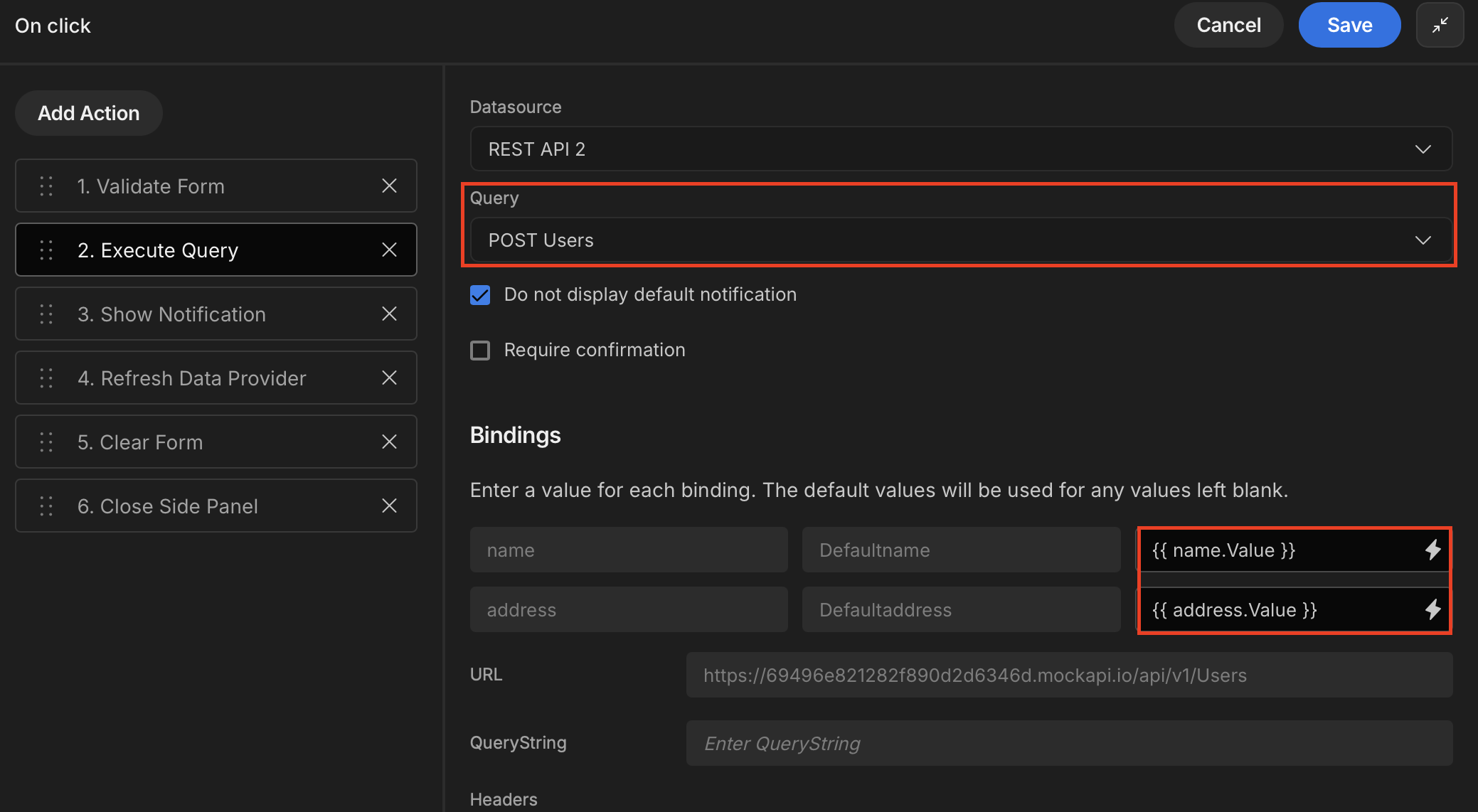

  4. Button actions:
    • Execute query createUser
    • Refresh table
    • Clear form
    • Show success notification
    • Close side panel

Validation checklist

  • Query tests return expected response codes
  • Table loads initial data
  • Edit flow updates row and refreshes UI
  • Create flow inserts row and refreshes UI
  • Error responses surface user-visible notifications

Common improvements

  • Add delete query/action (DELETE /users/{{id}})
  • Add client-side search/filter

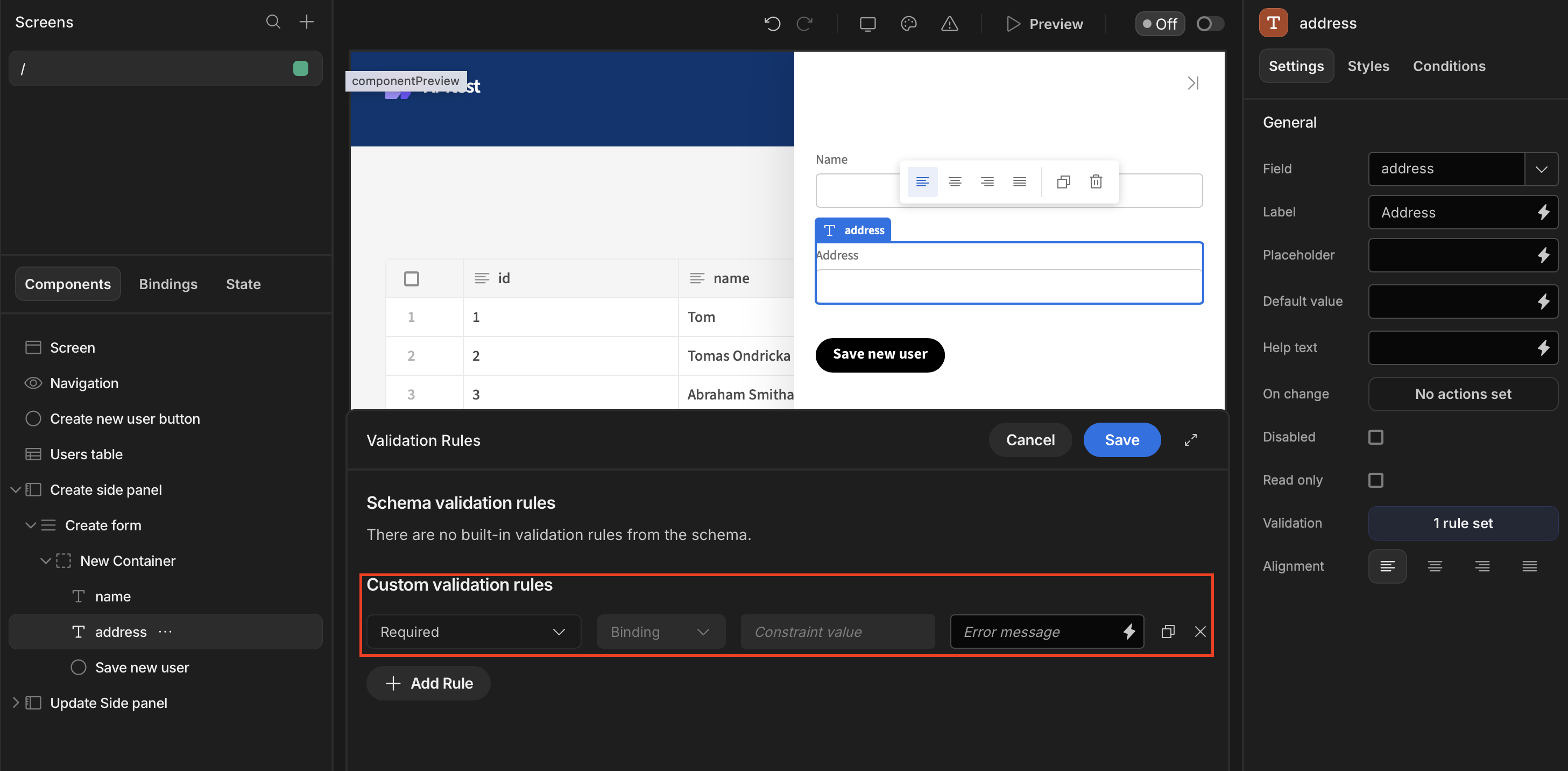

  • Add form validation rules before execute-query actions
