URL variables

Passing data between screens

URL variables let you pass information from one screen to another. For example, you can pass a row ID from a list screen to a detail screen and use it to load the selected record.

You can pass URL variables from:

  1. Link element
  2. A Navigate To action

Navigate To

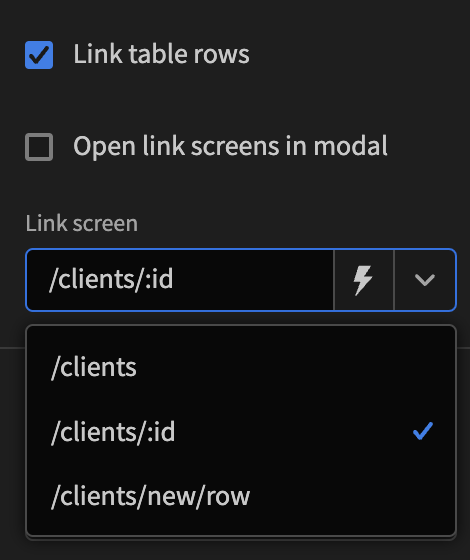

Some templates, such as the Client Contact List app, use row buttons instead of links. Tables can also run actions when a user clicks a row.

To open a detail screen for the selected row:

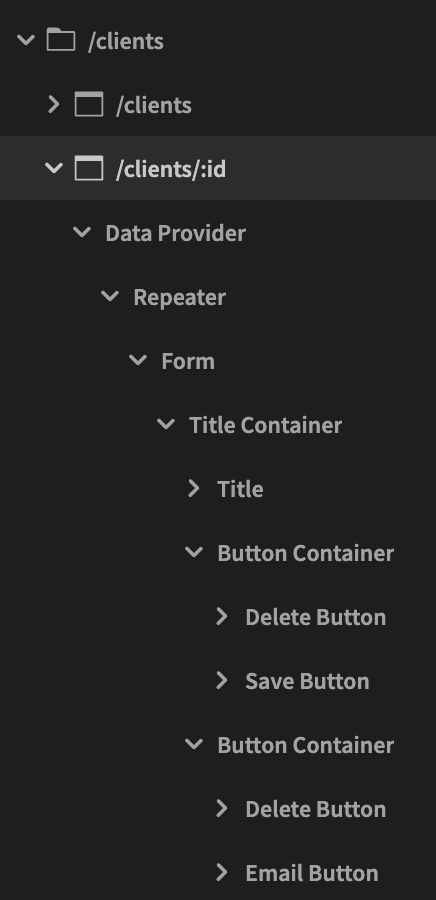

  1. Create a detail screen with a path such as /clients/:id. A word prefixed with a colon in a screen path defines a URL variable.
  2. Add a Navigate To action to the link, button, or table row on the list screen.
  3. In the action's URL, pass a binding for the selected row ID in place of :id. Depending on the component, this could be a repeater row binding or {{ Clicked row._id }}. At runtime, the resulting path will look like /clients/12345.

On the detail screen, access the value with the {{ URL.id }} Binding. The binding name must match the name after the colon in the screen path.

To load only the selected client, add a filter to the Data provider on the detail screen:

  1. Set the filter field to _id.
  2. Set the operator to Equals.
  3. Set the value to the {{ URL.id }} binding.

You can then use a Repeater or another component to display fields from the filtered client.

Multiple variables

While passing a row ID is the most common use case, you can define multiple variables in a screen path. Separate each variable with a slash, for example /clients/:id/:companyId/:timestamp.

Access each value through its corresponding URL binding, such as {{ URL.id }} or {{ URL.companyId }}.

A detailed example is available in this discussion.

Test URL variables

When you edit a screen that contains URL variables, the Screen settings panel shows the route structure and lets you enter a temporary value for each variable. Enter a representative value, such as a row ID, to make it available under URL in the bindings drawer.

Temporary values only affect the builder. Use them to check how different records populate your components without repeatedly previewing or publishing the app.
