Line Chart

The Line Chart component is an easy way to visualize progression easily. For example, if you want to plot the amount of applications you have received per day, you could get something like this.

Adding a Line Chart

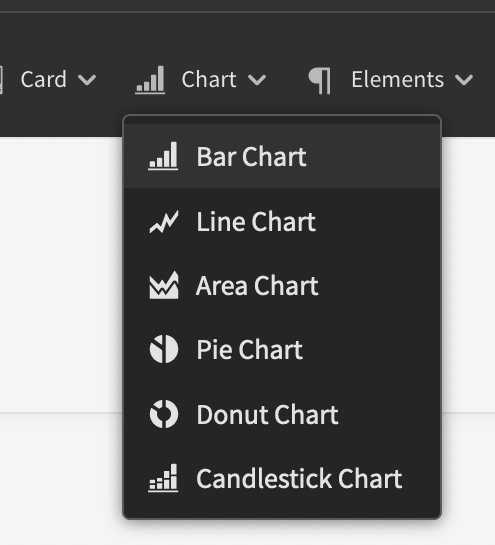

To add a line chart, head over to the design section in the Budibase UI. Then, you'll need a wrapping Data Provider. After you've added the data provider, add a Chart > Line Chart to the design as a child of the data provider. This should connect your chart to the database directly.

Then, in the Settings PanelSettings Panel - The Settings Panel is where you can configure every property of a design element. By default this is displayed, when clicking an element when you're in the Budibase Design Section, on the right. you will be able to configure your chart to display exactly what you want. First, you want to select the correct Data Provider, if you have more than one as a parent. The second step is to select a Label column. The Label Column defines the labels on your X-axis. Lastly, you'll want to select a Data column. This column will represent the data drawn in the chart. For this to work the column will of course have to be numeric.

And that's it, you have your line chart. Want to understand all the possible customization settings? Check the reference below.

📘

Numeric Data Only

Of course, line charts need to have a scale, so for the data column(s), you can only select Numeric columns

Settings Panel

The settings panel has quite a few customization options, allowing you to get the most out of your line chart.

Setting

Description

Provider

The Data Provider as a parent of your chart

Label Column

The Labels you want to display with your data. These are displayed on the X-axis

Data Column(s)

The data you want to display as lines. This has to be numeric. Can be multiple

Format

Will divide labels by thousand or million on the axis and adds a K or M to the axis respectively

Y-axis Label
X-axis label

The labels you want to display next to the Y and X-axis.

Width
Height

The size you want the chart to be, supports all CSS supported sizes

Colours

Choose from one of the predefined colour-palettes

Curve

The type of line you want to have.
Smooth: A curved line flowing with the data
Straight: A line straight from point to point
Stepline: A line which remains horizontal, and drops down completely for the next data point. See below the reference table for an example of all three.

Data Labels

Will display the value on every point on the graph

Animate

Will animate when the data changes or on startup. Data-change can happen through Dynamic filter's for example.

Legend

Will display, in the upper-right corner, the label for each of the data columns displayed on the chart

Line Chart Curve Types

There are three kinds of curves you can choose from in a line chart. In the image below you can see all three, with the same data-set, as a comparison.
