OpenID Connect

OpenID Connect (OIDC) is a simple identity layer built on top of the OAuth 2.0 protocol, which allows clients to verify the identity of an end-user based on the authentication performed by an authorization server or identity provider (IdP), as well as to obtain basic profile information about the end-user.

Setup

To enable OIDC for your IdP follow the setup steps below.

Configure your IdP

Any provider that supports the OIDC protocol can be integrated into Budibase, you may even implement your own.

Guides on the most common providers are documented for you, you can find them in the sidebar. These include Auth0, Azure AD, Okta, and more.

Callback URL

• During your configuration, you must enter the Callback URL for your Budibase installation.
• For example: http://{your-budibase-host.com}/api/global/auth/oidc/callback

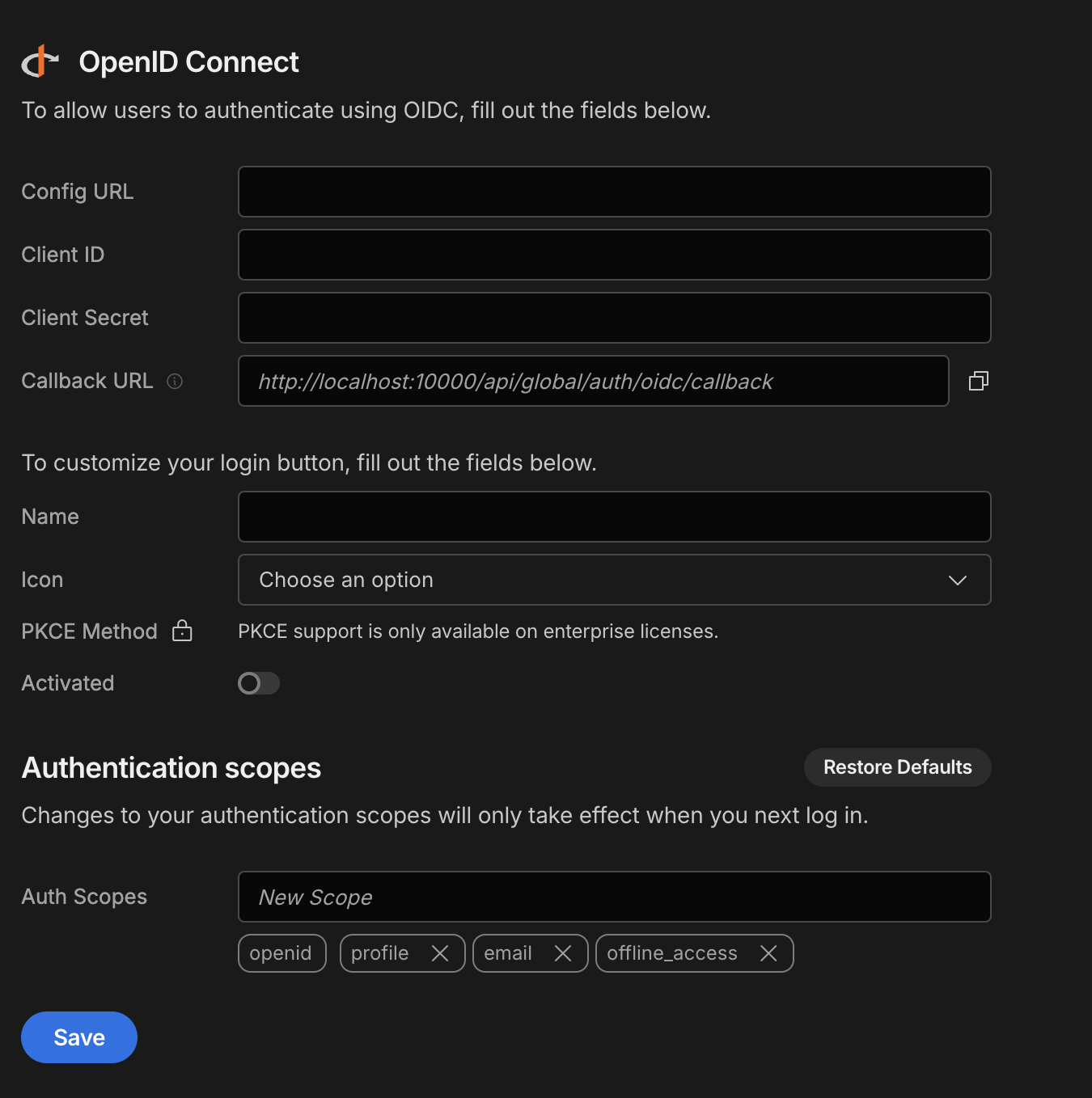

Configure OIDC in Budibase

To configure an OIDC integration in Budibase visit the Auth section of the builder.

Fill in the following options from your IdP:

• Config URL
  • URL where Budibase can find the OpenID Provider Configuration Document
  • For example: https://{your-identity-provider.com}/.well-known/openid-configuration
• Client ID
  • Your unique ID issued by your IdP
• Client Secret
  • Your unique secret issued by your IdP
• Allow unverified email linking
  • When disabled (default), Budibase will only link an SSO login to an existing local account or a pending invite if the identity provider confirms the email address is verified. Only enable this if you fully trust the provider to assert email addresses - otherwise it can allow account takeover. Note that global admin invites always require a verified email regardless of this setting. This setting can be globally overridden at boot time using the OIDC_ALLOW_UNVERIFIED_EMAIL_LINKING environment variable.

Save the configuration to enable OIDC on your login page.

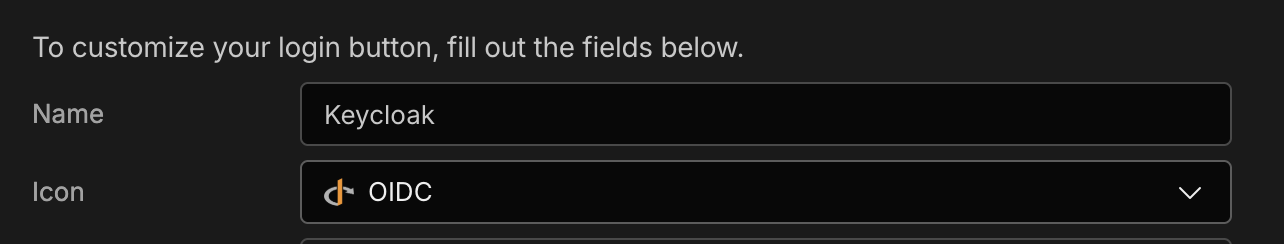

Customize your login

Use the login configuration options to customize the OIDC login button.

Fill in either of the following:

• Name
  • The name on the login button. This will be substituted at Sign in with {name}
• Icon
  • The icon on the login button. Choose from:
    • One of the default icons
    • Upload a custom icon

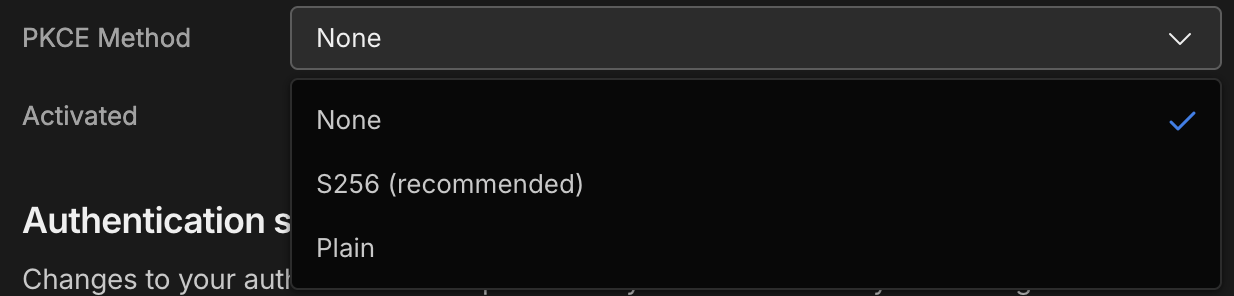

PKCE method (optional)

You can add PKCE (Proof Key for Code Exchange) support to the OIDC SSO flow. PKCE provides an additional layer of security for authorisation code flows by requiring a code challenge and verifier.

• OIDC Setup in Budibase: PKCE can now be configured with three options:
  • None - disables PKCE
  • S256 - recommended and most secure option
  • Plain - less secure, provided for compatibility

Important Information

Some additional details on the OIDC integration are highlighted below.

User provisioning

Unlike the Google integration which requires a local user account to exist in advance, OIDC users are created in Budibase automatically when they log in for the first time. It is important that only the users you wish to access Budibase have been assigned to the application configured in your IdP.

You may still use email onboarding to create an account for a user in advance. When the user logs in via SSO for the first time, Budibase will automatically reconcile their SSO identity with any matching pending invite. This ensures the user inherits the roles and permissions from the invite without needing to set a local password first.

By default, Budibase will only link an SSO login to an existing account or a pending invite if the identity provider confirms the email is verified (via the email_verified claim). If the email is unverified, the login will be rejected with an error unless Allow unverified email linking is enabled. When enabled, Budibase will allow reconciling existing accounts and non-admin invites, but global admin invites will still strictly require a verified email for security. This behavior can be globally controlled using the OIDC_ALLOW_UNVERIFIED_EMAIL_LINKING environment variable.
