S3 File Upload

The S3 File Upload component is a special-built component that allows your users to directly upload from Budibase into an S3 Bucket.

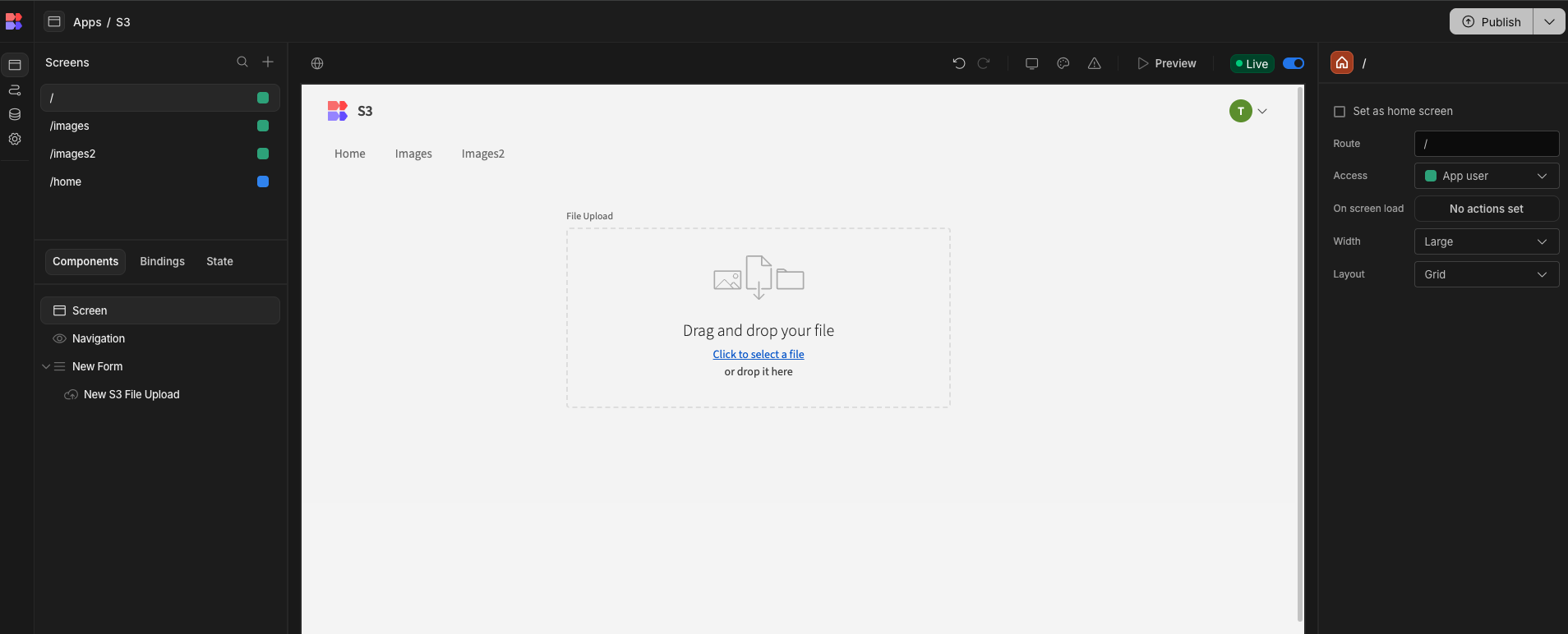

Visually the S3 File Upload component looks the same as the Attachment component.

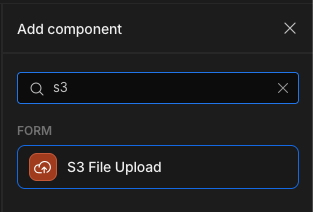

Adding the S3 File Upload

An S3 datasource must also have been added to the Data section in Budibase. After the S3 connection is established, you can select the Datasource, and enter a bucket and file name in the Settings Panel.

Both Bucket and File name support dynamic Bindings. For upload paths, Handlebars is recommended because it restricts dynamic values to the filename or validated Current User bindings.

For example, the following keeps the directory fixed and allows only the filename to change:

requests/{{ nameOfFile }}

A / in the filename binding is blocked, so it cannot be used to create another directory. Validated Current User bindings can also be used for user-specific or role-based folders:

requests/{{ user._id }}/{{ nameOfFile }}

Avoid dynamic directory segments based on other values, such as requests/{{ dynamicFolder }}/{{ nameOfFile }}, because the value could be changed to target a different folder. JavaScript bindings are fully dynamic and should only be used when the configuration and input values are trusted. For apps used by untrusted or third-party users, use Handlebars instead.

You will also need to provide a custom field name.

Required settings checklist:

• S3 datasource: the connected S3 data source to upload through.
• Bucket: the destination bucket name.
• File name: the output file name/path.

If any of these values are missing or invalid, the upload action will not complete successfully.

Dropzone settings

The S3 File Upload component can be customized through the Dropzone settings section in the settings panel.

• Extensions: Restrict the types of files that can be uploaded (see below).
• Compact: When enabled, the uploader displays a smaller, one-line interface.
• Title Text: The main heading displayed in the dropzone (available when not in compact mode).
• Upload text: The text for the upload link/button.
• Sub text: The secondary description text (available when not in compact mode).

Specifying acceptable file extensions

By default any file, with any file extension, will be accepted. To restrict this, provide an array of file extensions, e.g. [".webp",".png"].

When Using Handlebars, use the split helper:

{{ split ".png,.jpg,.jpeg,.svg,.gif,.webp" "," }}

When Using JavaScript, return an array of strings:

return ['.png','.jpg','.jpeg','.svg','.gif','.webp']

Upload File to S3 action

Whilst the upload component has been added, you still need to use an upload Action so that the user can submit their selected files to the S3 bucket.

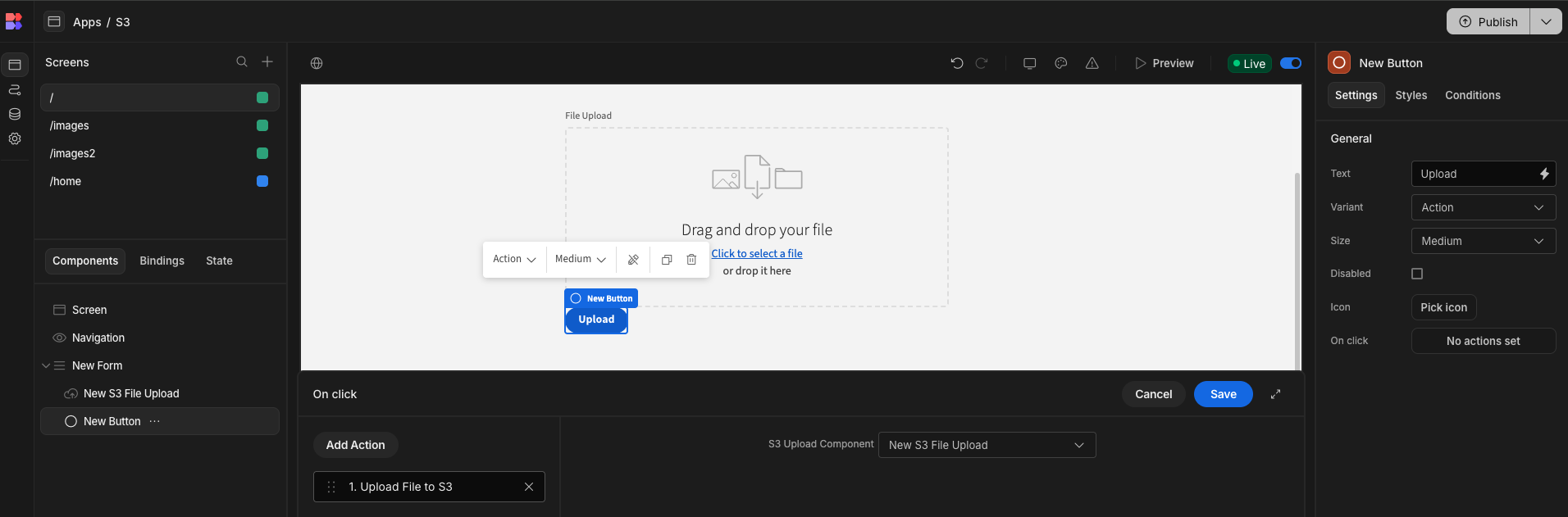

The easiest way to do this is to add a Button. Click Define actions, add the Upload File to S3 action, and select your S3 File Upload component from the dropdown. Be sure to click Save.
