Attachment

The Attachment component allows your users to upload files to your Budibase app.

Uploaded files are stored in MinIO.

The Attachment component works especially well with Budibase DB's Attachment data type.

๐Ÿ“˜

Filesize

Remember the maximum file size you can store in your database of choice

Adding an Attachment component

The Attachment component requires a Form component as a parent.

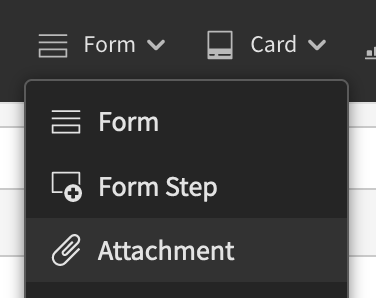

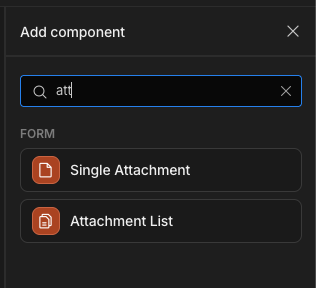

To add the Attachment component, click Form > Attachment.

After the Attachment component is added you can immediately start using it, no further configuration is required.

Manage access

If you want to specify user roles such as allowing public file uploads, then you'll need to adjust the write access levels of your table.

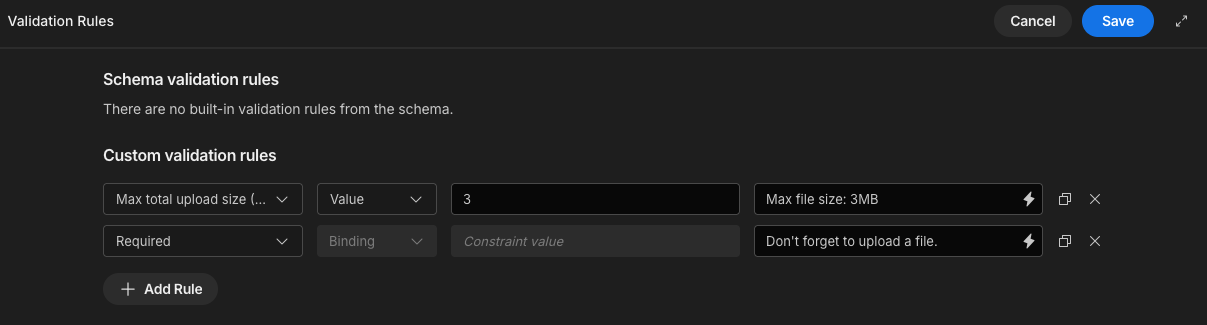

Validation

There a few Form validation options for the attachment field.

ConstraintDescription
RequiredAt least one file must be uploaded.
Max file size (MB)No uploaded file can exceed the specified limit in megabytes.
Max total upload size (MB)The total size of all uploaded files cannot exceed the specified megabytes limit.

Specifying acceptable file extensions

By default any file, with any file extension, will be accepted by the Attachment component for upload. However, in certain scenarios, a particular set of file extensions may preferred. For example, you may only want to accept PDF files. In other situations, you may only want image files.

The extensions property accepts an array of file extensions, e.g. [".webp",".png"]. When Using Handlebars , make sure to split the comma separated array. If Using JavaScript, simply return an array of extensions as shown below.

{{ split ".png,.jpg,.jpeg,.svg,.gif,.webp" }}
return ['.png','.jpg','.jpeg','.svg','.gif','.webp']

This will result in the operating system's native File Open Dialog having a corresponding custom filter:

Customised file extensions filter in the Attachment component

Customised file extensions filter in the Attachment component
